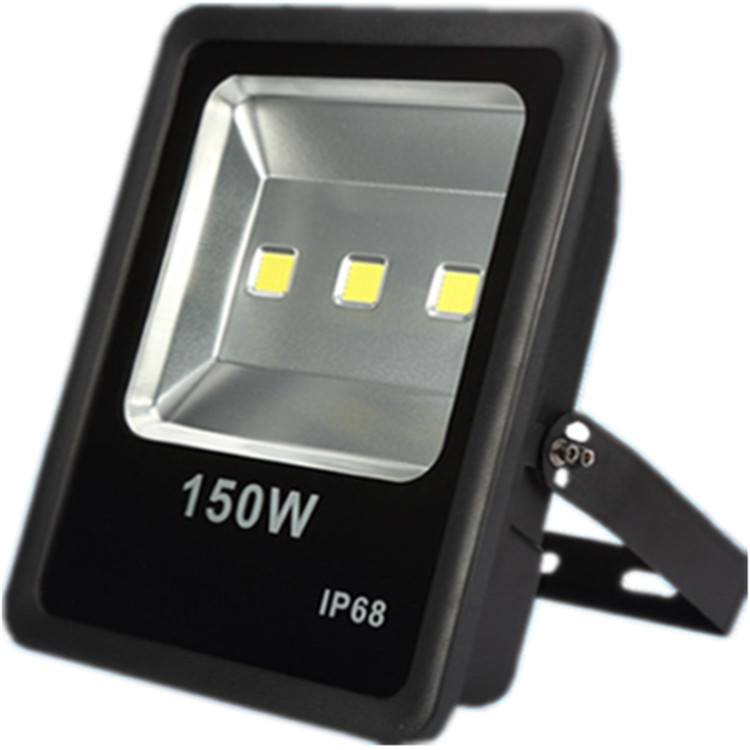

10W-200W COB LED flood lighting

Model No.: SF-F-B50
Power: 10W/20W/30W/50W/100W/150W/200W
Input Voltage: AC110-240V
LED: SMD+COB
Colour: 2700-7000K
Beam Angle: 120 degre
Light Eff.: 100-120LM/W
Warranty: 3-5 years
CRI: 75
Driver Brand: CE Approval driver/ Meanwell Driver
Specification

Feature

1 .Using self-packaged single 10W-300W High Power LED as the light source. This light source using multi-chip integrated single-group design, select high imports of semiconductor chips, with the feature of high thermal conductivity, small optical decline, pure light color, no ghosting;

2.The LED directly close with the shell, it can scatter heat   through the shell and air convection, the shell using aluminum alloy die-casting, the lamp can be effectively scatter heat and ensure the light source life. The perfect combination of 5mm tempered glass with high-intensity lights make the lamps can be using at high-humidity environment;

3. The body using anti-aging sealed silicone rubber, the surface of lamp have done the anodic oxidation and the spray treatment, the overall lighting is in line with the IP65 standard.

4. Using imported of high-purity aluminum reflector, enhanced the reflectivity effectively, ensure the output of luminous flux. It can be control the beam in the scope of required targeted. Enhance the effect of the light uniformity and utilization of light energy. Highlight the advantage of LED lamp’s energy-saving obviously

5. Start without delay, It can reach the normal brightness when connect the power and no need waiting, switching frequency can be   up to millions of times more;

6. Fast, Flexible Installation , the beam angle can be adjusted to 120 degree and 60 degree, used widely;

7. Green product: cool light source design, non-thermal radiation, pollution elements, achieve the green environmental protection and energy-efficient in the true meaning;

Model No.SF-F-B10SF-F-B20SF-F-B30SF-F-B50SF-F-B100SF-F-B150SF-F-B200
Input
Voltage
85-265VAC
Freqency50-60Hz
Power
Factor
>0.95>0.95>0.95>0.95>0.95>0.95>0.95
Power
10w20w30w50w100w150w200w
LEDBRIDGELUX
45mil
BRIDGELUX
45mil
BRIDGELUX
45mil
BRIDGELUX
45mil
BRIDGELUX
45mil
BRIDGELUX
45mil
BRIDGELUX
45mil
Lumen
(lm)
1200240036006000120001700024000
Luminous
Efficiency
120lm/W120lm/W120lm/W120lm/W120lm/W120lm/W120lm/W
CRI>75>75>75>75>75>75>75
LED
Driver
CE DriverCE DriverCE DriverCE DriverMEANWELLMEANWELLMEANWELL
Beam
Angle
120°
Color
Temperature
2800-3300K / 4000-4500K / 5500-6000K
IP
Grade
IP65
