30W-400W Aluminum house industrial lighting
Model No.: SF-H-B30
Power: 30W/50W/80W/100W/120W/150W/180W/200W/240W/300W
Input Voltage: AC100-265V
LED: Bridgelux COB
Colour: 2700-7000K
Beam Angle: 45/60/90/120 degree Aluminum cover
Light Eff.: 110-140lm/w
Warranty: 3-5 years
CRI: 80
Driver Brand: CE Approval driver/ Meanwell Driver
Specification

30W 50W 80W 100W 120W 150W 200W 250W 300W 400W phase change housing led high bay light



Vacuum phase change heatsink led high bay   light

Waterproof LED driver led high bay light

CREE chip XTE /Bridgelux COB   led high bay light

CE,PSE, ROHS certification & IP65

high bay led lights specification (Example 200w)

Item NO.SF-H-B200Color TemperatureWarm white (WW)2800-3000K/3000-3200K
Natural white (NW)3500-4500K
Input VoltageAC 95-295VPure white (PW)5500-6500K
Frequency Range50/60HZColor Rendering IndexWWRa>75
Total Harmonic Distortion≤ 9%NW / PWRa>80
Power Factor>0.95Average LuminanceBeam Angle7M8M9M
LED Quantity200PCS(Accord to PW:5500-6500K)85°232.51lx178.26lx140.87lx
Working VoltageDC 45-50V
120°145.06lx111.22lx87.89lx
LED Consumption200Wworking temperature-30 ~ +50°C
System Consumption200±5WAmbient temperature-30 ~ +65°C
LensOptical glass lensIP GradeIP54/IP65
Beam Angle45° / 120°LED working Life-span>50,000H
Luminous Efficiency120±5% LM/WColor of lamp shellSilver/Black
Luminous20000±20% LMCertificatesCE, RoHS, PSE



Application

Widely use in workshop,warehouse,highway toll stations,supermarkets, exhibition center, gymnasium, large logistics center and other places of lighting required.



Features:

updated high bay lamp

1. Using excellence inport semiconductor chip CREE chips, have high heat dissipassio performance, low luminous decay, pure color, no heavy shade etc, especiall light source can up to 120 lm/w of LED high bay light

2. Die cast allumum fixture with Vacuum phase-change radiator, has oustanding performance in thermel coductivity, samller and lightter than normal heat sink

3. Taiwan MEANWELL Driver, best quality stabel performance, waterproof.

4. Die cast fixture: Perfect die cast trearment process, beautiful appearance .
5. High purity aluminum reflector by anodic oxidation and polishing processing, the optimization of lighting performance at the same time, effectively reduce excessive light and glare

6. Certification: CE, PSE, ROHS ip65

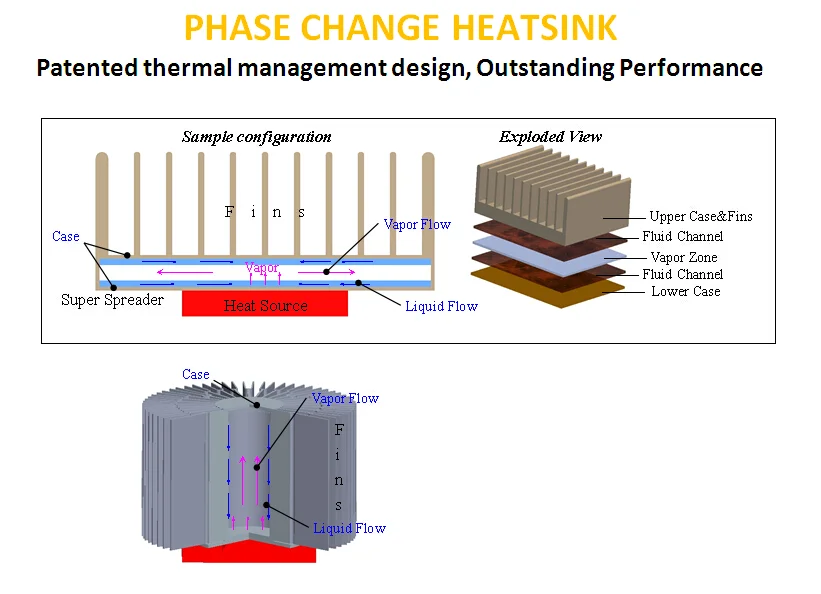

Patented thermal management design: PHASE CHANGE HEATSINK

This kind of aluminum housing is a heat sink with Vapor Chamber studded inside, perfectly combined the vapor chamber technology together with the traditional heat sink housing.

Structure of   the temperature equilibrium cavity of this new housing is consisted of the heat sink's baseboard, heat plate, infused vacuum purification liquid, and the cavity's inner structure.

How does this system working?

>The Liquid evaporating at the heat source inside the cavity, then diffuse in the whole space of the cavity, and congealed on the inner surface of the cavity, finally, the congealed liquid will flow back to the source by the structure of cavity and evaporation again. this system greatly improveds the heat dissipation efficiency.

Dimension:    200W low bay led lights

Packing:

1.Normal Packing with canton(export packing), goods can be packed under the customer's requirement.

2.If it is fragile, we will provide wooden case to protect them, if ship by sea, shipping trays can be offered for customers.

1 Set = 2 Boxes (Lamp Base + Reflector). We will pack the reflector by wooden box outside to prevent damage and deformation in the transportation.



Lamp Base Packing

CTN Size(1pc/box)

275*275*305mm

Weight(N.W/G.W)

5.6/6.3Kg

CTN Size(4pcs/box)

575*575*365mm

Reflector Packing

Beam Angle

85°

120°

CTN Size(10pcs/box)

440*440*350mm

530*530*270mm

120W 150W 200W 250W 300W 400W  phase change housing led high bay light

Shipping:

1. Express: By DHL/FEDEX/UPS it takes 3- 7 days to arrive the destination.

2. Air cargo: It takes about one week to arrive the destination.

3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.
