Classic Type 100W-400W UFO industrial lighting

Model No.: SF-H-B100
Power: 100W/120W/150W/200W/300W/400W
Input Voltage: AC100-265V
LED: SMD3030
Colour: 2700-7000K
Beam Angle: 120 degree
Light Eff.: 110-140lm/w
Warranty: 3-5 years
CRI: 80
Driver Brand: CE Approval driver/ Meanwell Driver
Specification

UFO LED HIGH BAY LIGHT (CLOUD LED HIGH BAY)

Aluminum Industrial light ufo IP65 5 years warranty 100w 120w 150w 250w 400w led high bay light

Product Applications

* LED High Bay Lighting series can be widely used in outdoor, indoor or half indoor lighting, like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth,waiting rooms, the platforms of railway station , indoor stadiums and flower cultivating tents etc.

Aluminum Industrial light ufo IP65 5 years warranty 100w 120w 150w 250w 400w led high bay light

Products Fixture

a. IP 65 rating is designed for challenging environments like water or dust locations.
b. Unique Lens design offers multiple beam angles: 45 degree /60 degree/120 degree
c. High efficiency SMD 3030 chip, Luminous efficiency: 120-150 lm/w;
d. Meanwell HBG Series led driver,

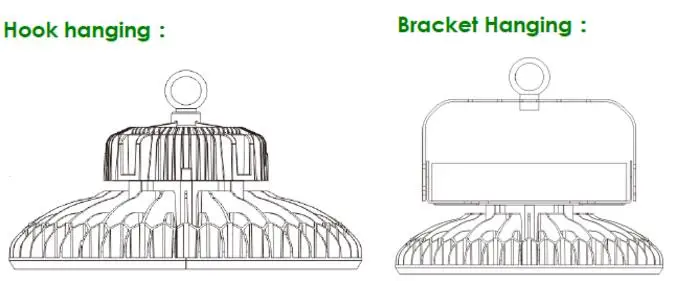

e. Installation: Hook Mount, Ring Mount, Pole Mount, Bracket Mount (Optional)
f. Multiple Ring Colors: Black, Red, Yellow

Replacement Table

Aluminum Industrial light ufo IP65 5 years warranty 100w 120w 150w 250w 400w led high bay light

Products Technical Specification

Aluminum Industrial light ufo IP65 5 years warranty 100w 120w 150w 250w 400w led high bay light

Model No.SF-H-B100SF-H-B120SF-H-B150SF-H-B200SF-H-B240SF-H-B300SF-H-B400
Power100W120W150W200W240W300W400W
Lumen14000LM14000LM20000LM26000LM30000LM42000LM58000LM

LED: SMD3030
Power Factor: >0.95
Colour Temperature: 3000K, 4000K, 5000K, 6000K (Red/Yellow/Blue/Green availabe)
Input voltage: AC85-265V/AC100-305V
Driver: Meanwell Driver or CE Approval Driver
CRI: >Ra80 ( Customized available, such as CRI>Ra90)
Luminous efficiency: 120-150lm/w
Housing color: Black/ Grey
IP grade : IP65
Beam angle : 120 degree

Material: Aluminum + Tempered Glass
Working temperature: -35 °C~ +55 °C
Lifespan: 50000 hours
Warranty: 5 years

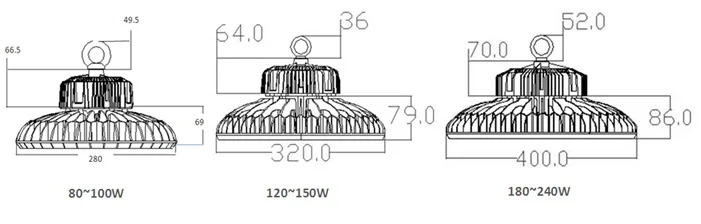

Product Dimension (unit: mm)(200w)

Aluminum Industrial light ufo IP65 5 years warranty 100w 120w 150w 250w 400w led high bay light

Aluminum Industrial light ufo IP65 5 years warranty 100w 120w 150w 250w 400w led high bay light

Light Distribution Curve (120 degree)

Aluminum Industrial light ufo IP65 5 years warranty 100w 120w 150w 250w 400w led high bay light

Product Packaging & Shipping
80w-100w 1pcs/carton, carton size: 33x33x22cm, 4KG/carton
120w-150w 1pcs/carton, carton size: 36x36x22cm, 5.5KG/carton

200w-240w 1pcs/carton, carton size: 44x44x23cm, 8.5KG/carton

300w-400w 1pcs/carton, carton size: 56x56x27cm, 13.5KG/carton

Installation Process

Aluminum Industrial light ufo IP65 5 years warranty 100w 120w 150w 250w 400w led high bay light

Installation Process
1.In case of fire, explosion, electronic shock, the install, inspect and maintenance must be operated by professional people.
2.Please make sure the power off before operation!Luminaries must be electronic grounding!
3.Please make the voltage supplied is available for the luminaries!
4.Please make the luminaries working under the limited working temperature!
5.In order to guarantee enough air convection, luminaries should not be installed in narrow space!


Hook installation steps
1.Cut off power before operation.
2.Knowing the inside diameter of the luminaires then Choose suitable hook for the luminaires.
3.Fix the hook before installation and make the it can bear over 3 times weight of the lamp
4.Connect the lamp with hook and make it is safe.
5.Connect the power wire:Brown,“L”,connect to LIVE; Blue, “N”,connect to NEUTRAL; Lime-green,
connect to EARTH/ROUND


Maintenance manual
1.Cut off power before maintenance
2.Clean the LED bay light regular to keep good light transmission.
3.Clean the dusk on the surface and heatsink regular to keep good heat dissipation.
4.Do not use water or strong corrosive liquid to clean the lamp, dry cloth is better.
5.Replace LED driver: use screwdriver to open the cover, fetch out the driver. You can see three AC wires, Match brown wire with “L”, Blue with “N”,
Kelly or yellow with “G”. The red or white wire on driver is the positive electrode, black wire is the negative electrode.
Notice, pls confirm the positive and negative electrode has not met extremely instead
