30W-200W Adjuat angle led street lighting

Model No. SF-S-B30
Power 30W/50W/80W/100W/120W/150W/200W
Input Voltage AC110-240V
LED SMD3030/CREE
Colour 2700-7000K
Beam Angle 150x70 degree
Light Eff. 110-140lm/w
Warranty 3-5 years
CRI 80
Driver Brand CE Approval driver/ Meanwell Driver
Specification

120w LED Street Lighting LED

Application for 120w led street light

LED Street Lighting-Suitable for highway, urban main road and secondary trunk road, the stadium, sidewalks, residential area, industrial park, square, park, school, villas, garden and other places of street lighting and so on.

Outdoor LED lighting 30w 50w 80w 120w 150w 200w Mean Well Driver IP66 led street light

Product Features led street light

* Powder painted aluminum cast housing highly weather proof. Luminaire is equipped with adjustable handle(mounting inclination up to 15°) designed for mounting on posts and arms of 60MM Level of tightness IP66. Diffuser is made of   hardened glass.

*   LED high lumen valueand long life.

*   MEAN WELL High efficiency LED Driver, the wide range input voltage AC100-305V

*   Stretched aluminum with fins cooling design, better   cooling,light quality, light quality, LED Tj < 80℃.

*   LED the secondary optical processing, form a rectangular bat wing spot, science of light distribution curve satisfy all kinds of road lighting design standards.

*   Optical light distribution, no glare, no light dye, directionality is strong, high evenness.

Product Specification for led street lighting

Model No.SF-S-B30SF-S-B50SF-S-B80SF-S-B100SF-S-B120SF-S-B150SF-S-B200
Power30W50W80W100W120W150W200W
Lumen3600LM6000LM9000LM12000LM14000LM17000LM

24000LM


Input: AC100-305V 50/60HZ

Colour Temperature: 2700-7000K for optional

LED : SMD3030 or High power 1-3w LED light souce

Light efficiency: 110-130lm/w

CRI>RA80

Beam Angle: 145x75 degree

Power Factor: >0.9

Waterproof: IIP66

IK09

Material: Aluminum+ Tempered glass

Pole diameter: 60mm

Working Temperature:-30℃ - +50℃

Warranty: 5 years

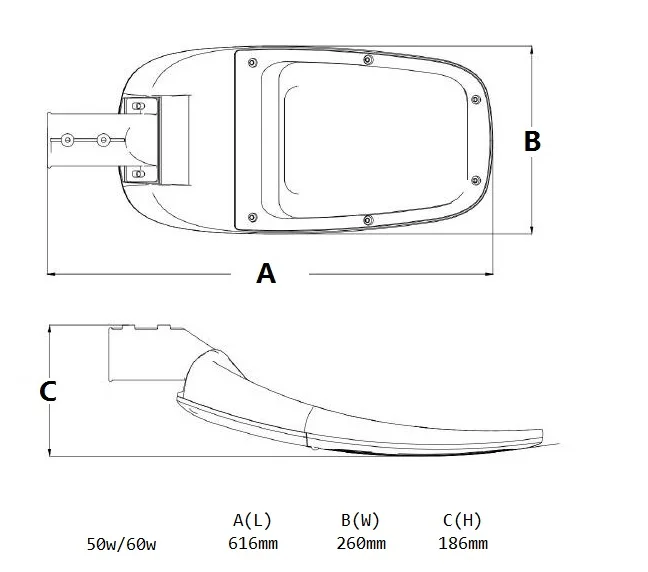

Products Dimmension(mm) for led street lamp

Outdoor LED lighting 30w 50w 80w 120w 150w 200w Mean Well Driver IP66 led street light

Products Distribution Curver street light

Outdoor LED lighting 30w 50w 80w 120w 150w 200w Mean Well Driver IP66 led street light

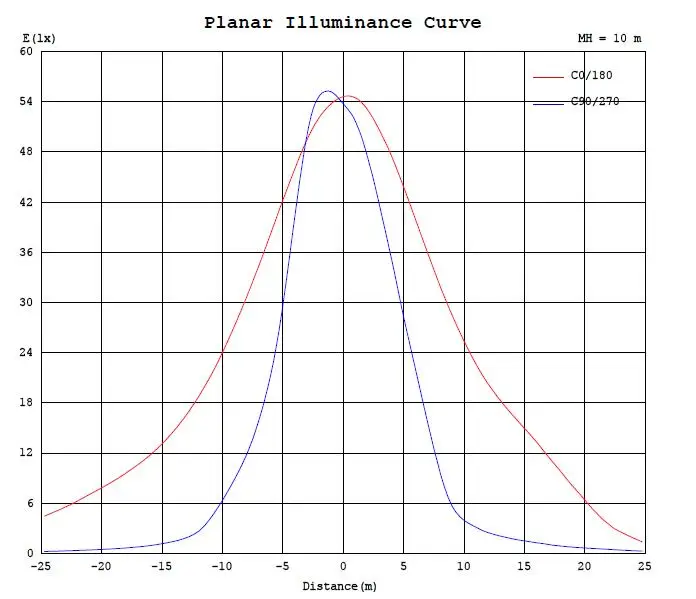

Planar Illuminance Curve for street lighting

Outdoor LED lighting 30w 50w 80w 120w 150w 200w Mean Well Driver IP66 led street light

Products Packing

Outdoor LED lighting 30w 50w 80w 120w 150w 200w Mean Well Driver IP66 led street light

Installation Instructions

Outdoor LED lighting 30w 50w 80w 120w 150w 200w Mean Well Driver IP66 led street light

Caution

1. The lamp must be installed by a professional electrician in accordance with the applicable and appropriate electrical codes and this instruction.

2. In order to prolong the life span of the lamp, please try to install the lamp under the condition which better for heat dissipation.

3. First check if the site can afford the weight of 1.5 times of the lamp, if not, please do not install.

Maintanince

1. To keep best light effect, please clean the light on time (suggest once a year).
2. Clean the lamp only with a soft dry cloth, don't use chemical solvents, and only after switching off the electricity, to prevent the surface layer of rust-proof and antiseptic from being damaged.
3.Turn off power in case of any maintenance.

Warranty

Under normal usage and storage, we give 5 years warranty on all of our products from date of sale. Please note that any damage or breakdown coursed by improper installation or application is out of warranty. Any failure is found in terms of product quality within warranty period. we will replace or change the product or component for free. If over the warranty period, we will charge the appropriate material and labor costs.

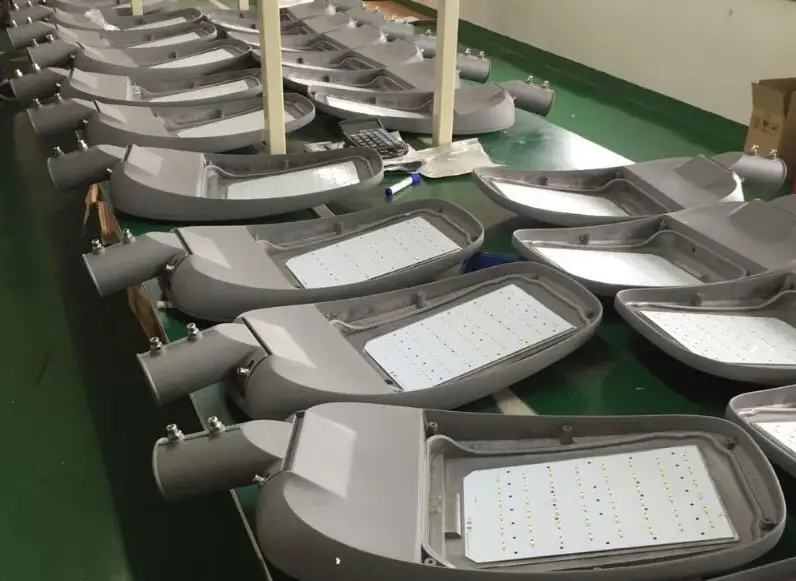

Our Production

Outdoor LED lighting 30w 50w 80w 120w 150w 200w Mean Well Driver IP66 led street light
