200W High quality LED FLOOD LIGHTING ( COB/SMD LED Flood Light)
Product Applications
* Workshop, factory, station, hypermarket, exhibition, center, gym, park lighting, garden lighting,Building lighting, Advertising board, outdoor advertisement ,wall ,gymnasium and so on.
Product Features
a. Use professional flood light’s thermal grease under the chip, let the heat run out quickly.
b. CE Approval LED Driver/Mean Well driver, the wide range input voltage AC100-265V
d. Use toughened glass, hard enough and won’t be broken during transportation
e. With reasonable compact light structure, and expertise radiating design, ensure the light working temperature lower, reduce light decay and expand lifetime.
f. Work perfectly in the high humidity environments, no delay start, no glare
g. Energy-saving, saving 80% than the ordinary lamp, Reliable squared silicone rubber seal, the lamp body sealing good, IP65.
Products Specification
| Model NO. | SF-F-B10 | SF-F-B20 | SF-S-B30 | SF-F-B50 | SF-F-B100 | SF-F-B150 | SF-F-B200 |
| Power | 10W | 20W | 30W | 50W | 100W | 150W | 200W |
| Lumen | 1100LM | 2200LM | 3300LM | 5500LM | 11000LM | 16000LM | 22000LM |
Power Factor: >0.9
LED: SMD2835
Colour Temperature: 3000K, 4000K, 5000K, 6000K (Red/Yellow/Blue/Green availabe)
Input voltage: AC100-265V~, 0/60Hz
Driver: CE Approval Driver(10w-100w), Mean Well Driver( 100w-200w)
CRI: >Ra80 ( Customized available, such as CRI>Ra90)
Luminous efficiency: 100-120lm/w
Housing color: Black
IP grade : IP65
Beam angle : 120°
Material: Aluminum + Tempred Glass
Working temperature: -25 °C~ +45 °C
Lifespan: 50000 hours
Warranty: 2-3 years

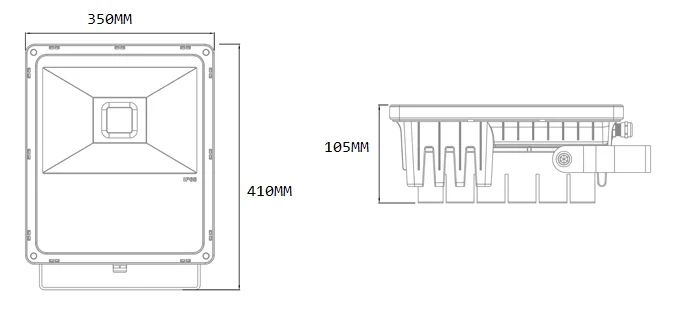

Product Dimension (unit: mm)(100w)

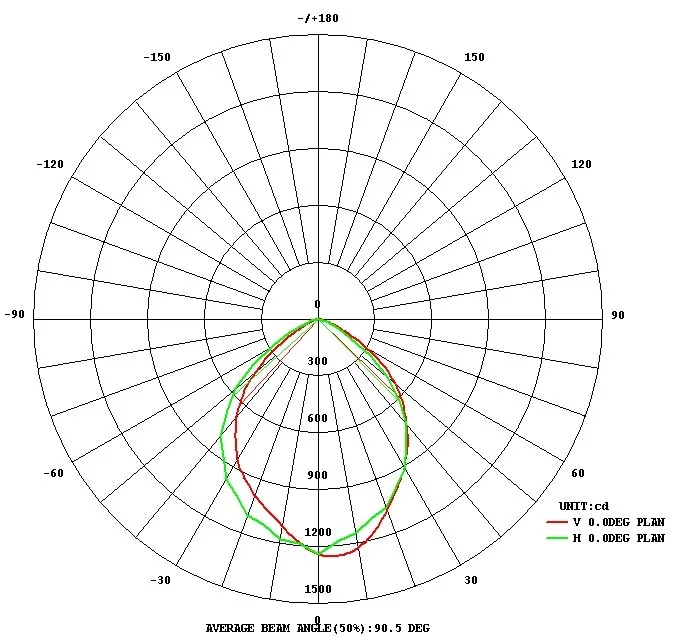

Light Distribution Curve(120 degre)
Installation
Precautions For Installation
1. Make sure that power is turned off before installation to ensure safety.
2. By mounting holes on the mounting bracket product can be directly screwed to the mounting pole or wall mounting
3. After fixing a good product, you can slightly loosen the screws on both sides of the bracket, then convert the bracket to adjust the llumination angle of the lamp.
4. Working environment temperature -25 ℃ ---- + 45 ℃. Humidity: 10% -90% RH.
5.Wiring joints, please do the installation of lighting waterproof seal, measures to prevent water and drain
6.The non-dimming lighting fixtures, do not connect with any standard dimmer.
7. Please find a professional electrician to install, greeting connect wiring according to instructions on the label, make sure that a good grouding.
Packing Details
| Power | 10w | 20w | 30w | 50w | 100w | 150w | 200w |
| pcs/carton | 30pcs | 15pcs | 12pcs | 8pcs | 5pcs | 3pcs | 2pcs |
| Carton Size (Cm) | 42*30*35 | 58*32*24 | 42*39*29 | 48*30*31 | 43*30*35 | 36*29*42 | 36*41*23 |
| Weight | 19KG | 18KG | 16KG | 14KG | 14KG | 17KG | 13KG |
Caution
This product is LED lamps protection class IP65, it is not suitable for swimming pools or other underwater sites.
To ensure proper use, please do not change the LED lamp structure. Any adverse please contact the manufacturer sales staff.
Regular cleaning of the floodlight glass, in order to maintain good lighting translucent.
Regularly floodlight housing and radiator dust cleaning, in order to maintain good heat dissipation.
Regular cleaning of the floodlight glass, in order to maintain good lighting translucent.
Product and packaging have corresponding clearly marked, do not mix
Transport outside the box in strict accordance with the standard, sealing, taping, labeling paste (product name, quantity and
other information)
Be careful not to drop the heavy beat and dumping, severe stress within the glass may shatter
3 years after the deadline must be qualified after re-examining longer be used.
